When engineers and purchasing managers look at different pipe materials for commercial water treatment systems, the material they choose has a direct effect on how reliable the system will be in the long run and how much it will cost to run. TP304 pipe, which is made of "18-8" austenitic stainless steel that is standardised by ASTM A312, is always the best choice. With 18% chromium and 8% nickel, it has great rust resistance, structural stability, and regulatory compliance in a wide range of settings, such as public water supply, industrial fluid treatment, and food-grade processing. The best material for engineers who can't afford to skimp on quality or durability is one that has been used in many projects around the world.

Understanding TP304 Pipe: Specifications and Properties

Before agreeing to a pipe material, it is very important to understand the technical background. The mechanical structure of TP304 (UNS S30400) shows why it is the most commonly used austenitic stainless steel in business and industry.

Chemical Composition and Mechanical Strength

The alloy has between 0.08% and 20.0% carbon, 18.0 to 20.0% chromium, and 8.0 to 10.5% nickel. Under normal conditions, this composition keeps a stable austenitic microstructure that doesn't become sensitive. It has a minimum tensile strength of 515 MPa (75 ksi) and a yield strength of 205 MPa (30 ksi), which is strong enough for the structural needs of pressurised water treatment circuits. It also stays tough even at very low temperatures and can handle oxidation up to 870°C (1,600°F).

Applicable Standards and Available Configurations

This type of material meets the requirements of ASTM A312, ASME SA312, ASTM A213, EN 10216-5, and ASTM A249. It can be used for both seamless and welded (ERW/EFW) pipe designs. The outside sizes that can be ordered run from 10.3 mm to 1,219 mm, and the wall thicknesses go from SCH 5S to SCH 160 and SCH XXS. During production, full solution annealing is used to get rid of any remaining internal stress and keep the grain structure stable. There are different surface finishes up to 600#, such as pickled and annealed, bright annealed (BA), No.1, No.4, 2B, satin, and mirror polished. These can be used in both industrial and sanitary settings.

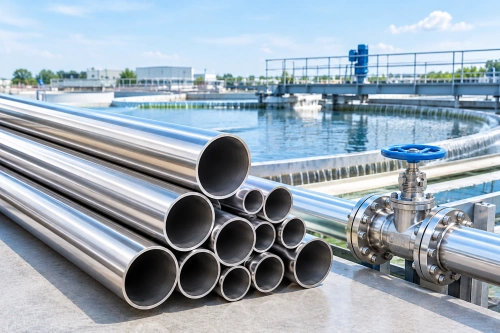

Advantages of TP304 Pipe in Commercial Water Treatment

There is a lot of evidence that austenitic 304-grade stainless steel works better than other grades. A 2019 study in the journal Corrosion Science proved that chromium-nickel stainless steel pipes corroded more than 40 times less quickly than carbon steel pipes did in the same conditions of exposure to city water. This directly leads to measurable savings for procurement teams that are in charge of managing lifecycle costs.

Here are the main performance benefits that apply to water treatment:

• Resistance to corrosion in environments with changing pH: The passive chromium oxide layer keeps growing, shielding the pipe wall from mild acids, alkalis, and dissolved chloramines that are common in treated water streams. This self-repairing feature stops the walls from getting thinner over time, which happens with carbon steel systems that aren't sealed.
• Longer service life and less maintenance: Unlike PVC, which breaks down when exposed to UV light and changing temperatures, or carbon steel, which needs to be coated and inspected every so often, stainless steel piping systems in municipal water infrastructure usually last more than 25 years with little maintenance.
• Regulatory and certification compliance: TP304 pipe supports EN 10204 3.1 Mill Test Certificate (MTC) paperwork, which is needed for regulatory permission for many foreign water treatment projects and food preparation facilities. It also meets the standards of ISO 9001:2015 for quality management.

All of these benefits work together to keep a water treatment plant running smoothly and protect the total investment in capital over its entire operating lifecycle. The quality of both the materials and the paperwork makes compliance checks easier in export markets.

TP304 Pipe vs. Other Materials: Making the Right Choice

Choices about what materials to use have big effects on operations and finances. Key features that can be used to compare are shown in the table below:

TP316 provides superior resistance in high-chloride environments like seawater desalination, but carries a meaningfully higher material cost. For standard municipal water treatment and industrial fluid handling where chloride concentrations remain moderate, TP304 delivers an optimal balance of performance and procurement economy. TP304L, with its reduced carbon content (0.03% max), suits applications involving extensive welding where carbide precipitation risk must be minimized, but offers slightly lower mechanical strength.

Carbon steel and PVC remain viable only in narrowly defined, non-corrosive, low-pressure service conditions. In any application involving treated water, chemical dosing loops, or temperature variation, their lifecycle cost disadvantages outweigh initial savings within two to five years of service.

Procurement Insights: Sourcing TP304 Pipes Efficiently

When procurement teams buy stainless steel pipe through a route that hasn't been checked out, they run the risk of material swap, which is the most common and expensive problem in this supply area. To be clear, TP304 pipe needs to have its Cr and Ni content checked by Positive Material Identification (PMI) analysis and come with an EN 10204 3.1 Mill Test Certificate that can be linked to a specific heat number.

When purchasing workers look at a TP304 pipe maker or seller, they should make sure of the following:

• MTC paperwork: Each package should have a 3.1 or 3.2 certificate from the mill where it came from, along with a heat number that can be used to connect the pipe's physical state to its chemical and mechanical test results from the lab.
• Protocols for non-destructive testing: On production batches, reliable providers test them with hydraulic pressure, eddy current pressure, and ultrasonic testing (UT). Before the item is shipped, these tests find any internal holes, broken weld seams, or changes in the wall thickness.
• Third-party inspection acceptance: Suppliers who accept proof from SGS, BV, TÜV, DNV, or ABS show that they are responsible. This is especially important for export orders, where the buyer can't check out the factory in person.
• Flexible MOQ and wait time: Orders in stock should be ready in 3–5 business days. Custom items that are standard take 15–20 days. Suppliers with stores near major ports that keep a moving inventory of 5,000 tonnes or more can meet buyers' immediate purchasing needs without making them commit too much capital.

The quality of the packaging also needs your attention. Pipes should come with plastic end caps, individual protective sleeves, steel strapping, and either fumigation-free wooden cases or waterproof woven bags to keep the surface from rusting and the pipes from getting damaged during ocean freight.

Installing and Maintaining TP304 Pipes in Commercial Water Treatment Systems

Welding and Joining Best Practices

In water treatment applications, TIG welding (GTAW) is the best way to join 304-grade stainless steel. Using AWS ER308L filler wire and keeping the argon back-purging going during root pass welding keeps the inner hole surface from oxidising, which would lower its resistance to rust and raise the risk of pollution in water systems that people drink. During installation, don't touch carbon steel tools; iron gets embedded in the surface and starts pitting rust.

Routine Inspection and Corrosion Monitoring

Once a city water system is up and running, it is usually inspected visually every 12 months. If the water has high amounts of salt or a pH that changes below 6.0, eddy current screening done every 24 months can find early-stage cracking before it goes through the wall. As long as there are weld-heavy areas, ASTM A262 Practice E can be used to figure out how likely it is that intergranular rust will happen.

According to internal project records made public by the contractor, a water treatment plant in Southeast Asia that switched from coated carbon steel pipes to 304 stainless steel pipes saw a 60% drop in unplanned repairs over a five-year tracking period. It only took 3.2 years for the extra material cost to pay for itself.

Conclusion

When it comes to industrial water treatment settings, few other materials can match TP304 pipe's constant mix of resistance to rust, mechanical strength, regulatory compliance, and ease of purchase. Its proven performance and long history of successful projects around the world help people make confident specification decisions. It can be used for everything from building public infrastructure to processing food to moving fluids in factories. When accurate measurements, proper documentation, and on-time delivery are essential, TP304 stainless steel pipe is still the smart and proven choice.

FAQ

Does TP304 pipe comply with drinking water safety standards?

Yes. When produced to ASTM A312 and accompanied by an EN 10204 3.1 MTC, TP304 stainless steel pipe meets the material requirements for potable water systems in most international jurisdictions. Its non-reactive inner surface prevents metallic leaching into the water stream, supporting compliance with NSF/ANSI 61 and equivalent standards.

Is TP304 suitable for high-temperature water treatment service?

TP304 maintains structural integrity up to 870°C in oxidizing atmospheres and performs reliably in continuous service up to approximately 650°C. For standard commercial water treatment, which rarely exceeds 120°C, it is entirely appropriate. Where temperatures exceed this range in combination with elevated chloride concentrations, TP316 or TP321 may warrant consideration.

What factors affect delivery timelines for bulk orders?

Stock orders for standard schedules (SCH 10S, 40S, 80S) in common OD ranges typically ship within 3–5 business days from well-stocked suppliers. Custom dimensions, specialized finishes, or large-volume orders requiring production scheduling generally require 15–25 days. Third-party inspection adds 3–5 days depending on inspection agency scheduling and the volume of testing requested.

How do I verify that the supplied pipe is genuinely TP304 grade?

Request PMI (Positive Material Identification) test results alongside the MTC. A handheld XRF analyzer can confirm Cr and Ni content at the delivery site in under two minutes per sample. Cross-referencing the heat number on the pipe stencil against the MTC laboratory results provides complete chain-of-custody verification.

Partner with All Trust for Certified TP304 Pipe Supply

All Trust maintains over 5,000 tons of rolling inventory, ships stock orders within 3–5 days, and provides full EN 10204 3.1 MTC documentation with every consignment. As a dedicated TP304 pipe manufacturer and supplier, we accept SGS/BV/TÜV third-party inspection and support low MOQ orders. Contact our technical team today at info@hballtrust.com to request a certified quote and secure a reliable supply chain for your next water treatment project.

References

1. ASTM International. ASTM A312/A312M: Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes. ASTM International, 2022.

2. American Society of Mechanical Engineers. ASME B31.3: Process Piping Code. ASME, 2022.

3. Outokumpu Stainless. Corrosion Handbook: Stainless Steel in Water Treatment Applications. Outokumpu, 2021.

4. Sedriks, A. J. Corrosion of Stainless Steels, 2nd ed. John Wiley & Sons, 1996.

5. European Committee for Standardization. EN 10216-5: Seamless Steel Tubes for Pressure Purposes — Technical Delivery Conditions for Stainless Steel Tubes. CEN, 2021.

6. Materials Technology Institute. MTI Manual No. 13: Guidelines for the Selection of Stainless Steel for Water Treatment Equipment. MTI, 2018.

ASTM A269 stainless steel tubing is always the standard that engineers use when they need to define tubing for measurement loops, control panels, or hydraulic signal lines. A269 tubing is made of austenitic stainless steel and can be seamless or welded. It is suitable for general corrosive and temperature-variable service and has the tight size tolerances, smooth bore surface, and bendability that precision fluid systems need. Whether you are looking for TP304 or TP316L types for a heat exchanger assembly or an air control circuit, knowing what makes this standard special will help you make better purchases every time.

Understanding A269 Stainless Steel Tubing

What the ASTM A269 Specification Actually Governs

You can find nominal-wall seamless and soldered austenitic stainless steel tubes in the ASTM A269/ASME SA269 standard. It is made for general use in harsh environments and heat-cycle situations. The plan calls for much tighter tolerances for the outside diameter (OD) and wall thickness than most pipe plans call for. If you want the tubing to fit right inside compression ferrule fittings so that it doesn't leak when the fittings shake, this is an important difference.

A269 sets rules for TP304, TP304L, TP316, TP316L, TP321, and TP347 types of materials. Each grade has its own set of chemical limits. Like TP304, TP304 needs 18.0–20.0% Nickel (8–11%) and Chromium. It must have a minimum tensile strength of 515 MPa (75 ksi) and a minimum stretch of 35%. Because it is a very stretchy material, those who make sensor tubing can bend and flare these tubes without breaking them in the field.

Seamless vs. Welded: Choosing the Right Manufacturing Route

As269 says that cold-drawn seamless tube should have a uniform wall structure and not have a lengthwise weld joint. It is important to do this in tough chemical conditions and high-pressure hydraulic systems where the seams might not be strong enough. For bigger OD ranges, welded tubing is cheaper and still meets the needs for eddy current and hydraulic tests. It is made by automatic TIG or plasma welding and then full-tube heating. A maximum of 90 HRB is set by the norm. This keeps the tube material softer than the ferrule, which makes it possible for a strong bite seal that doesn't go bad.

Understanding A269 Stainless Steel Tubing

What the ASTM A269 Specification Actually Governs?

The standard ASTM A269/ASME SA269 includes nominal-wall seamless and welded austenitic stainless steel tubing that is meant for general service in toxic conditions and heat cycle situations, and A269 tubing is a key product under this specification. The specification calls for outside diameter (OD) and wall thickness tolerances that are much tighter than normal pipe plans. This is an important difference when tubing needs to fit properly inside compression ferrule fittings so that it doesn't leak when the fittings are vibrating.

The following material types are controlled by A269: TP304, TP304L, TP316, TP316L, TP321, and TP347. Chemical limits are set for each grade. For example, TP304 needs 18.0–20.0%. Chromium and 8–11 percent Nickel, a minimum tensile strength of 515 MPa (75 ksi), and a minimum stretch of 35%. Because the material has a high elongation value, people who make instrumentation tubing can bend and flare these tubes without cracking them in the field.

Seamless vs. Welded: Choosing the Right Manufacturing Route

Cold-drawn seamless tubing made according to AS269 has a uniform wall structure and no longitudinal weld seam. This is important in harsh chemical environments and high-pressure hydraulic systems where seam integrity could be a weak spot. Welded tubing, which is made by automatic TIG or plasma welding and then full-tube annealing, is cheaper in larger OD ranges and still meets the requirements for eddy current and hydrostatic testing. The standard sets a hardness limit of 90 HRB. This makes sure that the tube material stays softer than the ferrule, which allows for a solid bite-seal that doesn't gall.

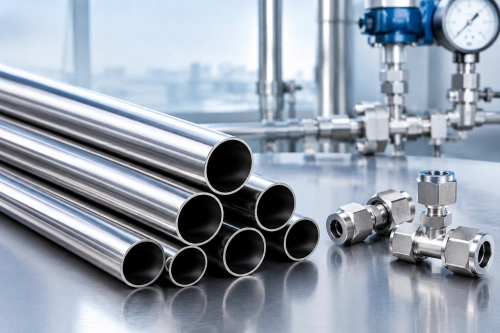

Key Advantages and Industry Applications of A269 Tubing

When purchasing instrumentation-grade tubing, purchasing managers often compare the mechanical performance to the cleanliness of the surface and the resistance to corrosion over time. A269-compliant tubing is the best choice in many industries because it meets the following performance standards:

• The minimum extension requirement of 35% means that tubes can bend easily around tight circles without wall thinning or ovality, which is necessary for U-bend heat exchanger systems and coiled sensor runs.
• Surface integrity after bright annealing (BA): Bright annealing in a hydrogen-protected atmosphere gets rid of surface oxides without using pickling chemicals. This leaves a Ra value low enough to meet the needs of both clean-bore gas chromatography sampling lines and fluid transfer requirements.
• Precision OD limits allow positive ferrule contact, as shown by air-under-water leak tests and hydraulic pressure proof above 1,000 psi in standard instrument tube sizes. This means there is zero leakage under cycle loads.
• Large range of dimensions: OD ranges from 1/16′′ (1.59 mm) to 5′′ (127 mm), and wall thicknesses range from 0.010′′ to 0.200′′. Can accommodate everything from tiny sensor capillary lines to connections on the shell side of the condenser.

These qualities of A269 tubing directly lead to lower costs for rework on production lines and fewer failures while in use in chemical labs, remote platforms, and HVAC control networks. OEM manufacturers who switched from copper refrigerant lines to TP316L stainless tubing under A269 say that the corrosion resistance is better in coastal and high-humidity installations. It's also easier to meet the requirements of end-customer factory audits that need proof of material traceability.

Comparing A269 Tubing with Alternative Stainless Steel Tubing Grades

A269 vs. A213: Which Standard Fits Your Application?

ASTM A213 covers tube that is designed to be used in boilers, superheaters, and heat exchangers. It requires figuring out the minimum wall thickness based on the design pressure and calls for a wider range of mechanical tests that are meant to check for high-temperature creep resistance. A269, on the other hand, specifies average-wall tubing for general use and puts more weight on OD tolerances and surface finish—properties that are much more important in instrumentation and control panels than following the design code for pressure vessels.

A269 vs. A270 and A312: Scope Differences at a Glance

A270 talks about sterile welding tubes for the food, dairy, and pharmaceutical businesses. The inner surface must have a clean weld bead. A312 covers pipe, which has a thicker wall and wall limits based on schedules that make it unsuitable for assembly with compression fittings. When you need precise fluid-signal lines or instrumentation pipes for your project, A269 is still the most functionally matched standard out of these three. It combines the corrosion-resistant metal chemistry with the exact measurements that instrument fittings need.

TP316L needs to be mentioned when buying A269 tubing that will be exposed to chloride-containing media or salt spray from the coast. Its low carbon content (0.030% max) keeps carbides from forming during welding, and the 2.0–3.0% molybdenum adds resistance to pitting that TP304 can't match in those conditions.

How to Select and Procure A269 Stainless Steel Tubing?

It takes more than matching a grade designation on a datasheet to find the right supplier. If you want to buy A269 tubing from a reputable company, they should give you EN 10204 3.1 Mill Test Certificates (MTC) with confirmed heat chemistry, PMI (Positive Material Identification) analysis when you ask for it, and third-party inspection acceptance from companies like SGS, BV, TUV, or DNV. These papers protect the people in charge of buying from OEMs during plant checks by end customers and customs clearance.

Customisation based on dimensions is just as important. Straight lengths that stay the same, like 6 m or 12 m, are used on assembly lines that need regular cuts. Coiled tubes on wooden spools cut down on the number of field splices needed for long instrument runs and reduce the risk of damage during shipping that comes with coils that aren't properly packed. For test orders or batches for design validation, having a low minimum order quantity (MOQ) and free samples available takes away the hurdle between engineering approval and volume commitment.

The application should guide the choice of surface finish. The BA finish is good for clean fluid service and instruments that need to be very pure. Mechanical cleaning with 180, 240, 320, or 400 grit meets some hygiene and appearance needs. The solution-annealed and pickled (AP) finish can be used on structural and heat exchanger parts where corrosion resistance is more important than how they look.

Conclusion

A269 tubing stainless steel instrumentation tubing fills a specific need in the industrial supply chain. It is the link between pressure-vessel pipe standards and hygienic sanitary tubing, providing the precise measurements, clean surfaces, and alloy adaptability that control panels, heat exchangers, and fluid-signal systems really need. Picking the right TP304 or TP316L grade, production method (seamless or welded), and surface finish (BA or pickled) depends on how corrosive the material is, how clean it needs to be, and the fitting system your application uses. The most common procurement risks can be avoided before they even reach the assembly floor by working with a supplier that keeps full material traceability records, independent testing records, and flexible order volumes.

FAQ

What environments are best suited to ASTM A269 tubing?

A269 tubing works well in heat exchanger bundles, pneumatic and hydraulic instrumentation circuits, corrosive chemical process lines, and clean-fluid pharmaceutical transfer lines. TP316L is best used in places where high temperatures or high salt levels make stress corrosion cracks more likely.

Does welded A269 tubing match seamless tubing in pressure performance?

Welded A269 tubing goes through the same eddy current and hydraulic tests as seamless product. For general work, the standard doesn't say anything different about the rated pressure for the two types. For applications with very high pressure or cyclic fatigue, seamless is still the safest choice for engineers.

Why is the hardness limit of 90 HRB significant for procurement?

The ceiling makes sure that the tube material is softer than the stainless or carbon steel ferrules that are used in compression fittings. This makes sure that the ferrule bites cleanly into the tube wall during assembly, sealing it without scoring or galling.

Can A269 tubing be supplied in coil form for long instrumentation runs?

Yes. Coiled instrumentation tubing wound onto wooden spools lets you run longer lengths without stopping, which lowers the risk of field-splice points and pressure drop. When spools are properly packed, they don't bend too much during ship freight.

What certifications should a qualified A269 tubing supplier hold?

Check that the product meets at least EN 10204 3.1 / 3.2 MTC, ISO 9001:2015, the CE mark, and PED regulations. It should also be able to be inspected by a third party from SGS, BV, TUV, DNV, or ABS to meet the needs of the end customer's audit.

Request a Quote from All Trust — Your Trusted A269 Tubing Supplier

Get a Quote from All Trust, Your Reliable A269 Tubing Supplier. They keep over 5,000 tons of rolling stock in TP304, TP304L, TP316, and TP316L grades. They offer low MOQ options, fast stock delivery in 3–5 days, and EN 10204 3.1 certified Mill Test Certificates on every order. Contact our technical team at info@hballtrust.com to request a custom sample, dimensional quotation, or third-party inspection arrangement today.

References

1. ASTM International. ASTM A269/A269M: Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service. ASTM International, 2022.

2. ASME. ASME SA-269: Seamless and Welded Austenitic Stainless Steel Tubing for General Service. ASME Boiler and Pressure Vessel Code, Section II, Part A, 2021.

3. Sedriks, A. J. Corrosion of Stainless Steels. 2nd ed. John Wiley & Sons, 1996.

4. Llewellyn, D. T., and R. C. Hudd. Steels: Metallurgy and Applications. 3rd ed. Butterworth-Heinemann, 1998.

5. Chemical Engineering Progress. "Material Selection for Instrumentation Tubing in Corrosive Service." American Institute of Chemical Engineers, 2019.

6. Bhadeshia, H. K. D. H., and R. W. K. Honeycombe. Steels: Microstructure and Properties. 4th ed. Butterworth-Heinemann, 2017.

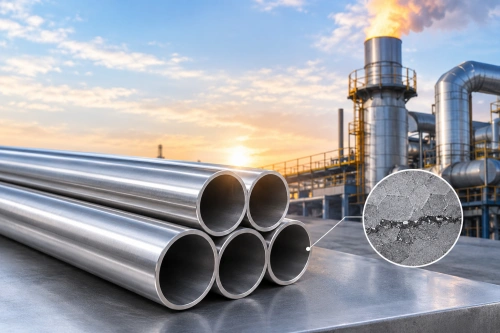

Standard grades of stainless steel start to fail quietly and expensively when furnace exhaust systems keep running at temperatures above 500°C for a long time. The grade TP316Ti (UNS S31635 / 1.4571), 316Ti pipe, solves this perfectly. By adding titanium as a stabilising element, it stores carbon forever as titanium carbides. This stops the loss of chromium that leads to intergranular rust at temperatures between 427°C and 816°C. For purchasing managers looking for pipes for chemical reactors, petroleum exhaust lines, or industrial furnace systems, knowing this grade's technical edge is the first thing they need to do to make a long-lasting, cost-effective choice.

Understanding 316Ti Pipe: Properties and Specifications

Metallurgical Composition and Mechanical Benchmarks

The chemistry used to make titanium-stabilized stainless steel pipe is planned. The titanium content is set between 0.50% and 0.70%, making sure that all the free carbon is bound before it can form chromium carbides at the edges of the grains. The alloy has between 16 and 18% chromium, 10 to 14 % nickel, and 2 to 3 % molybdenum. It has a minimum yield strength of 205 MPa and a tensile strength of 515 MPa. With a melting point range of 1370–1400°C and a density of 7.99 g/cm³, it can perform important structural jobs in settings with frequent temperature changes.

Applicable Standards and Available Dimensions

The TP316Ti steel pipe from Hebei All Trust Steel meets the requirements of ASTM A312, ASME SA312, ASTM A213, EN 10216-5, and ASTM A249. These are all widely recognised standards for high-temperature pressure service. Sizes range from NPS 1/8′′ to 30′′ (OD: 13.7 mm–609.6 mm), and wall thicknesses range from SCH 5S to SCH XXS (0.5 mm–50 mm). There are two types of production processes: seamless (hot-finished and cold-drawn) and welded (automatic longitudinal). This means that engineers can choose the best manufacturing method for their pressure class and budget.

Solution annealed and pickled (SA&P), bright annealed (BA), smooth, and mirror polished are some of the surface techniques that can be used. End types include straight end, bevelled end, threaded (NPT, BSPT), and flanged designs, so they can be used for almost any pipe assembly need.

Why 316Ti Pipe Is Ideal for High-Temperature Furnace Exhaust Systems?

Three harmful things happen at the same time in furnace exhaust environments: high temperatures that don't go down, oxidising and sulphurous gas atmospheres, and thermal cycle stress, and 316ti pipe is designed to withstand these conditions. Standard 316L pipe is good at resisting corrosion at lower temperatures, but above 450°C, it can be damaged because carbon is controlled by dilution instead of stabilisation.

This is why the titanium-stabilized grade is better from a technical point of view in these situations:

• Enhanced resistance to sensitisation across the critical temperature range (427°C–816°C): The titanium carbide network created during the post-anneal stabilisation heat treatment stays thermally stable even when the furnace duty cycle is extended, stopping grain boundary attack that would otherwise spread as micro-cracking.
• Better stress rupture strength: ASTM data confirms that TP316Ti has significantly higher creep resistance than 316L at temperatures above 600°C. This means that parts in high-throughput furnace lines don't need to be replaced as often.
• Chloride resistance in mixed-atmosphere exhausts: The 2–3% molybdenum presence stops pitting and crevice corrosion in exhaust streams that still have chloride compounds in them, which is a problem that often happens in furnaces used for chemical processing and medicinal incineration.

These features work together to cut down on unexpected repair shutdowns and increase the useful life of assets in ways that cheaper options just can't match. As an example, a chemical equipment OEM that works with rotating kiln exhaust lines regularly reports 40–60% longer pipe repair intervals after moving from normal 316 to the titanium-stabilized grade.

Comparing 316Ti Pipe With Other Common Stainless Steel Alternatives

TP316Ti is often compared to types like 304, 316L, 321, and duplex 2205 by people who work in procurement. Each material has its place, but at high temperatures, the differences in performance become clear.

Grade 304 does not have any molybdenum or titanium stabilisation, unlike 316ti pipe. It works fine at room temperature, but it becomes sensitive very quickly above 425°C, which means it can't be used for long-term furnace exhaust service. Grade 316L keeps carbon levels below 0.03% to lower the chance of sensitisation. However, this method doesn't work well when the pipe is continuously heated to high temperatures and stays in the sensitisation range for hours or days at a time.

Grade 321 is the most functionally similar; it uses titanium stabilisation in the same way, but doesn't have molybdenum. In exhaust settings with chloride compounds or acidic condensates, the lack of molybdenum makes the material more likely to pit, but TP316Ti fixes this problem.

Duplex 2205 has a higher tensile strength, but its duplex microstructure becomes weaker above about 300°C, which means it can't be used for long periods of time at high temperatures. Even though carbon steel is cheap at first, it corrodes quickly in hot, oxidising exhaust gas and usually needs to be replaced every two to three years in furnace uses that are very tough.

The titanium-stabilized austenitic grade always gives a better return than the alternatives it replaces when you look at the total cost of ownership over ten years. This includes the cost of replacements, downtime, and inspection labour.

Procurement Guide: How to Source Quality 316Ti Pipes for Your Projects?

It takes more than just comparing price lists to find verified TP316Ti material. There is product on the market that is labelled as 316Ti but fails PMI verification for titanium content. This is a risk that purchasing managers can't ignore when furnace exhaust systems are involved.

A well-organized sourcing checklist helps keep both quality and budget in check:

• Ask for EN 10204 3.1 Mill Test Certificates: Each package should have an MTC that can be tracked by heat that confirms the chemical makeup, mechanical results, and heat treatment records. Certificates issued under EN 10204 3.2 that have a third-party countersignature add another level of security.
• Ask for the results of the ASTM A262 Practice E intergranular rust test: This test directly proves that stabilising titanium works in the heat that is given. Suppliers who can't provide this paperwork pose a major risk to tracking.
• Check that the wall thickness tolerance is correct. ASTM A312 allows a wall thickness under-error of -12.5%. Before committing to a bulk order, make sure that the supplier's dimensional inspection records, which should include data from a digital profilometer, are within this range.
• Accept inspection by a third party. Reliable sellers will let SGS, BV, TUV, DNV, or ABS check the goods at the point of origin. This protects buyers from other countries and gets rid of disputes after the goods arrive.

Hebei All Trust Steel ships go through the ports of Shanghai, Tianjin, Ningbo, Qingdao, and Shenzhen. Standard stock orders are sent out within 3–5 days, and orders with unique measurements are finished within 15–20 days. Hexagonal steel packages with strong steel bands and plastic end caps are used for packaging. These keep the pipe ends safe from damage and surface rust while they travel across the ocean. For extra safety, orders with sensitive surface finishes can come in wooden cases or waterproof woven bag wrapping.

Conclusion

Choosing the right pipe, like 316ti pipe for furnace exhaust service, is an important choice that will have long-lasting effects on how the furnace works. The TP316Ti (UNS S31635 / 1.4571), a titanium-stabilized molybdenum-bearing grade, targets the exact failure mode—intergranular sensitization—that leads to pipe decline too quickly in settings with long-term high temperatures. It gives buying teams technical trust and supply chain openness because it meets ASTM A312 standards, has all the necessary EN 10204 3.1 paperwork, has passed 100% PMI testing, and has been accepted by a third-party review. This grade is still the best choice when security, genuine materials, and confirmed arrival dates are more important than getting the cheapest unit price.

FAQ

What is the key difference between 316Ti and 316L for furnace exhaust use?

What is the main difference between 316Ti and 316L when it comes to using them for furnace exhaust?
316L controls carbon by diluting it to lower the chance of sensitisation, but this protection wears off after long-term contact with temperatures between 427°C and 816°C. TP316Ti binds carbon directly as stable titanium carbides. It keeps the integrity of the grain boundaries even after long thermal duty cycles, which is why it is the best choice for continuous high-temperature exhaust service.

Can 316Ti pipe handle continuous service above 800°C?

TP316Ti works successfully up to about 800°C in oxidising environments and can be used continuously. Periodic peaks above this level are manageable, but higher nickel alloys like 310S or Alloy 800H may need to be looked at for uses that need to be used for a long time above 900°C.

How do I verify that the pipe I receive is genuine TP316Ti material?

Ask for an EN 10204 3.1 MTC that can be traced back to its source and confirms that the titanium content meets the grade requirements (5¿(C+N) min to 0.70% max). You should also do a PMI (positive material identification) test when the goods arrive and, if necessary, an ASTM A262 Practice E intergranular rust test on sample coupons from the heat that they were exposed to.

What certifications should a reliable supplier provide?

To show that they are a reliable supplier, they should have EN 10204 3.1/3.2 Mill Test Certificates, ISO 9001:2015 certification, ASTM A262 Practice E test reports, PMI analysis records, and NDT documentation with results from hydrostatic, eddy current, or ultrasonic tests.

Partner with All Trust for Certified 316Ti Pipe Supply

The material in your furnace's vent system should work as promised every time it heats up or ships something. All Trust keeps a constant supply of checked TP316Ti stainless steel pipe that is fully documented with EN 10204 3.1 MTCs and can be inspected by SGS, BV, or TUV. As a reliable 316Ti pipe manufacturer and supplier, we offer low minimum order quantities, flexible lead times, and technical support that is tailored to your needs. Contact our team today at info@hballtrust.com or visit qxgc.aixdb.cn to request a certified quotation.

References

1. ASTM International. ASTM A312/A312M: Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes. ASTM International, 2022.

2. ASTM International. ASTM A262: Standard Practices for Detecting Susceptibility to Intergranular Attack in Austenitic Stainless Steels. ASTM International, 2021.

3. European Committee for Standardization. EN 10216-5: Seamless Steel Tubes for Pressure Purposes — Technical Delivery Conditions — Stainless Steel Tubes. CEN, 2021.

4. Davis, J.R. Stainless Steels. ASM International, 1994.

5. Lula, R.A. Stainless Steel: Properties and Applications in High-Temperature Environments. American Society for Metals, 1986.

6. Outokumpu Stainless. Outokumpu Corrosion Handbook: Stainless Steels and Their Properties. 11th ed., Outokumpu Oyj, 2015.
